Advantages of Gorilla Wall Braces®
to Fix Bowing Basement Walls

Gorilla Wall Braces® are Professional Engineer-Stamped
• Patented design utilizes three floor joists to increase the pushing strength
• Works on both perpendicular or parallel basement walls
• Can be used on new & uncommon construction methods
• Unique floor bracket requires no removal of concrete floor
• Engineered to exert force along the wall evenly to eliminate wall shear
• Works on block and poured walls
• Exterior excavation is not necessary for most basements
Gorilla Wall Braces® can be installed year-round
• Installation can usually be completed in one day

Patented & Engineer Stamped

Gorilla Wall Braces® patented design utilizes the support of three floor joists, increasing the pushing strength over other basement bracing systems that push off only one floor joist.

Gorilla Wall Braces® have been put through pressure and stress tests by a Professional Engineer – earning a Professional Engineer Stamp that they are safe and effective to fix bowing basement walls when installed according to specifications.

Gorilla Wall Braces®

How They Work

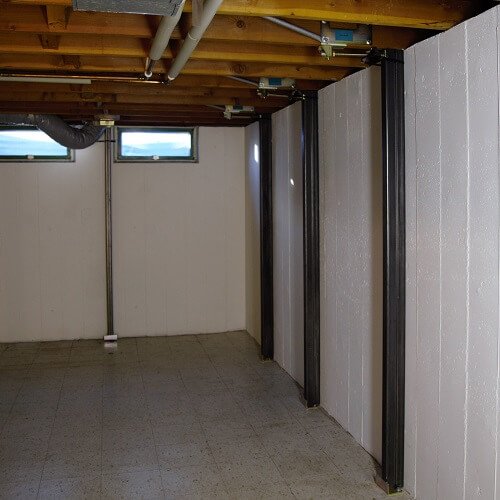

The Gorilla Wall Brace® system has been engineered to exert force evenly along the wall to eliminate wall shear. Steel beams are attached to the concrete basement floor and the wooden joists above with Gorilla Wall Braces® to stop a buckling wall from moving further inward. The engineered floor bracket of the Gorilla Wall Brace® system requires no removal of the concrete floor. The patented design of Gorilla Wall Braces® utilizes three floor joists to distribute the wall load more evenly and to give it more pushing strength. Gorilla Wall Braces® are continually tightened to push the bulging basement walls back to plumb over time – or with slight excavation done on the outside, the Gorilla Wall Brace® system can straighten basement walls in just one day.

*The steel wall beams for the Gorilla Wall Braces® system are purchased separately at your local steel yard as they are too cost prohibitive to ship.
NOTE: If you have an extreme case where the floor joists are rotten, insect or bug eaten or very soft wood, do not order this system to straighten your pushing walls. Use our Hold-Right® Wall Anchor System instead.

Gorilla Wall Braces®

See How Gorilla Wall Braces® Work

Perpendicular Gorilla Wall Brace®



To straighten buckling basement walls that are perpendicular to the floor joists, a Perpendicular Gorilla Wall Brace® is used.

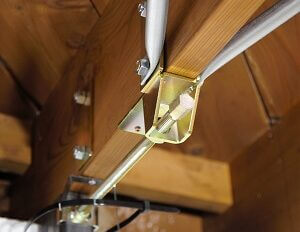

Unique in the industry, the Perpendicular Gorilla Wall Braces® utilize the support of three floor joists. This allows the Perpendicular Gorilla Wall Brace® to push off of three floor joists, increasing the pushing strength over other systems on the market that push off of only one floor joist.

By utilizing three floor joists, the Perpendicular Gorilla Wall Braces® are also able to distribute the wall loads more evenly to the joists. This reduces the side pressure which prevents the wood floor joists from twisting or buckling as with other basement wall straightening systems pushing off only one floor joist.

Parallel Gorilla Wall Brace®

A Parallel Gorilla Wall Brace® is available for bowing basement walls that are parallel to the floor joists.

Parallel Gorilla Wall Braces® are secured in a similar fashion to evenly distribute wall loads over multiple floor joists and to give it more pushing power.

Our patented Gorilla Wall Braces® will stop either bulging wall from moving inward any further.

Gorilla Wall Braces® are a proven solution to straightening bowing walls and eliminates any further movement of basement walls pushing in. It is the most effective and economical wall bracing system available in the market today!

illustration of a top view of a basement exterior walls and basement ceiling floor joists with arrows pointing to what is a parallel wall and perpendicular wall so pick the correct Gorilla Wall Brace

Straighten Bowing Walls in One Day

Professional Engineer-Stamped Gorilla Wall Braces® also have the ability to move bowed foundation walls back into place the same day when the wall is excavated. To move the wall the same day or for severely bowed basement walls, the wall needs to be excavated next to the foundation on the outside to alleviate soil pressure on the foundation wall. The Gorilla Wall Braces® can then be tightened to apply pressure on the wall until they push the bowed wall back into place. Most jobs only take one day to complete.

WATCH A QUICK INSTALL

Straighten Bowing Basement Walls Over Time WITHOUT Excavation

Professional Engineer-Stamped Gorilla Wall Braces® can also straighten most walls over time with no excavation to the exterior of the home. A constant pressure can be kept on the bracket by regularly tightening the screw at the top of each Gorilla Wall Brace®. This pressure will slowly move the beam to plumb. As the beam moves, the basement wall will also move back to its original position, straightening the basement wall without any exterior excavation.

Straighten Bowed Basement Walls with Metal I-Joists and Spancrete Ceilings

Gorilla Wall Braces® can be used in basements without a wood floor joist ceiling. Many newer houses with bowing walls have ceilings of 16-24 inch I-Joists made with 2 inch x 4 inch bridging, and steel bridging, while others are made with plywood. Gorilla Wall Braces® can be attached to the modern “I floor joist” in these newer homes with only minor modifications.

Gorilla Wall Braces® can also be installed where there are no floor joists, such as basements that are constructed with spancrete at the ceiling. Resch Enterprises has an exclusive pushing bracket that can be attached to the spancrete.

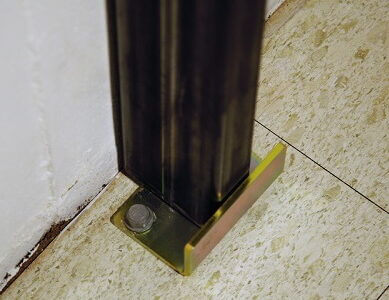

Floor Bracket Included
with Gorilla Wall Brace Assembly

Our innovative floor bracket allows for the installation of Gorilla Wall Braces® without removal of the homeowner’s concrete floor.

photo of the 3/4 inch plywood bridging floor joists - a modification to install Gorilla Wall Braces

Gorilla Wall Braces® Review

Jerry W. in Brownsville, MN wrote…

“The Gorilla Braces worked GREAT! I had a block wall with a 4 inch bow. After the braces were in place and it was excavated outside along the wall… I began to tighten the Gorilla Wall Braces, just a couple turns every hour or so. In 3 days time the bow was almost totally gone. See the attached pictures.”

CLICK PLAY to see Jerry’s before/after pictures of how Gorilla Wall Braces® straightened his severely bowing basement wall.

BEFORE/AFTER GORILLA WALL BRACES

When to Use Hold-Right® Wall Anchors Instead

A Gorilla Wall Braces® system should not be used in areas such as stairways, wood basement walls, baseboard basement waterproofing system installed along wall to straighten, cupboard areas, hot water heat registers along the wall, and a walk out basement opposite wall.

In these areas or circumstances we recommend using our Hold-Right® Wall Anchor System that uses an earth anchor placed in the ground approximately 10 feet from the building to pull the bowing wall straight again.

NOTE: If you have an extreme case where the floor joists are rotten, insect or bug eaten or very soft wood, do not order this system to straighten your pushing walls. Use our Hold-Right® Wall Anchor System instead.
